Module 1 Formstorming

Weekly Activity Template

Jiarui Yao/Sunny

Project 1

Module 1

Including the most common rectangular prisms, cylinders, and spheres in everyday life.

Activity 1

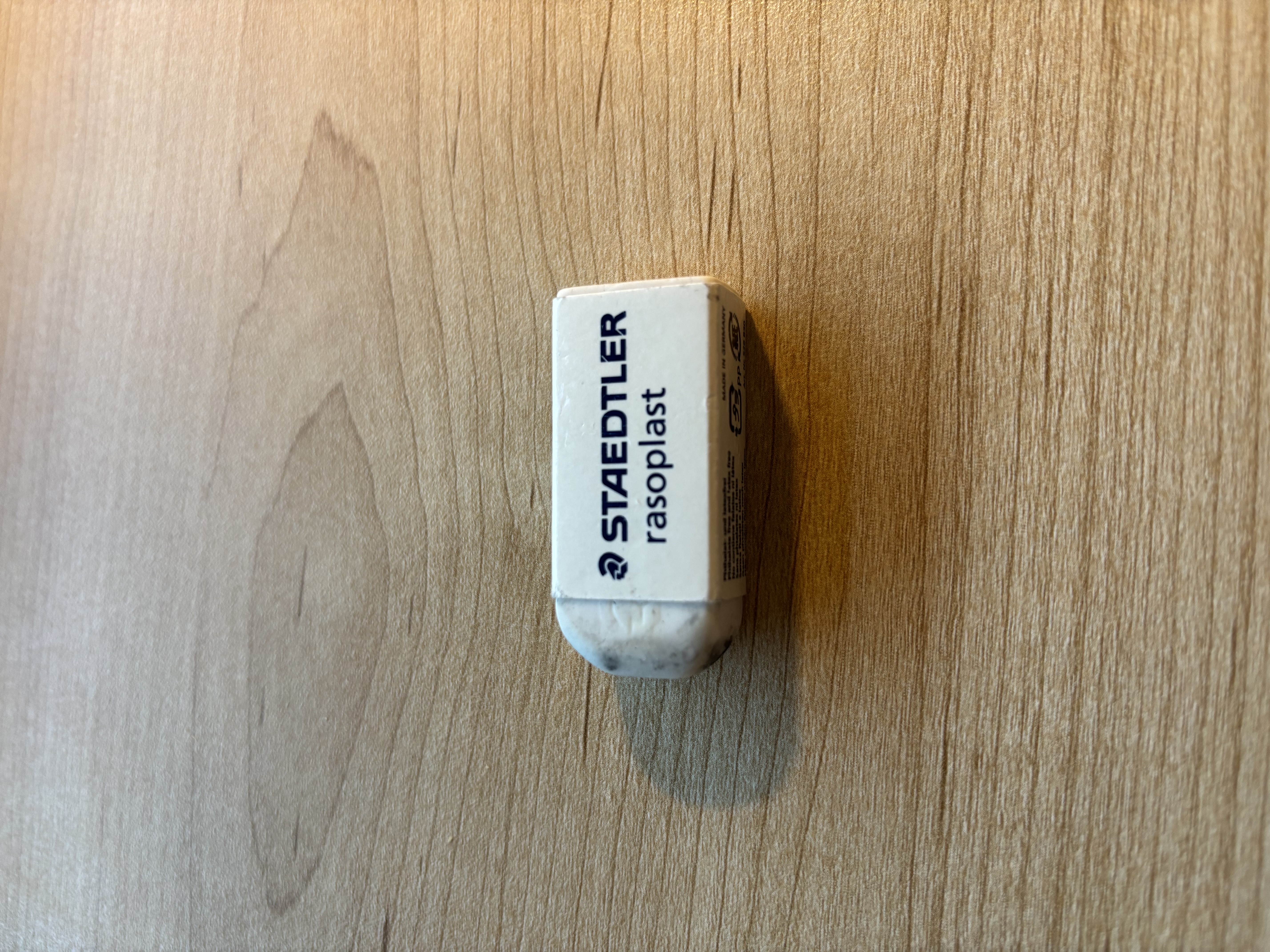

My eraser is the closest thing I have to a rectangular prism.

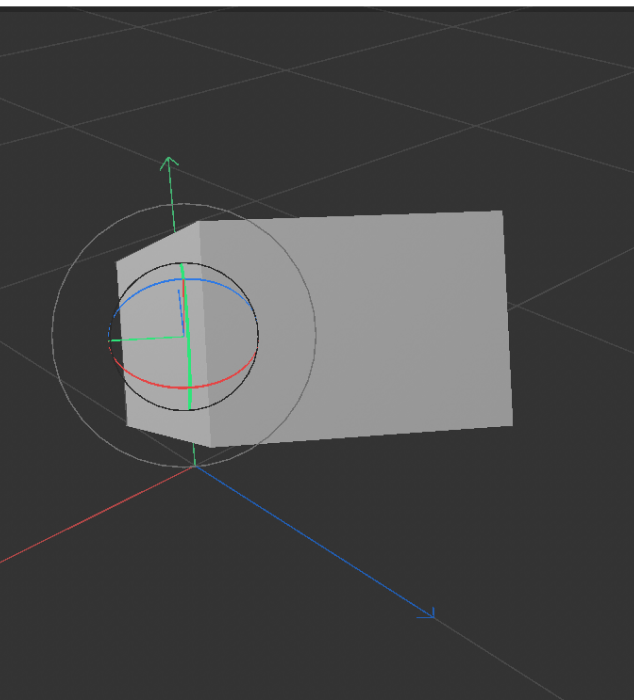

It has a whole trapezoid that lets me study the scaling function in Cinema 4D.

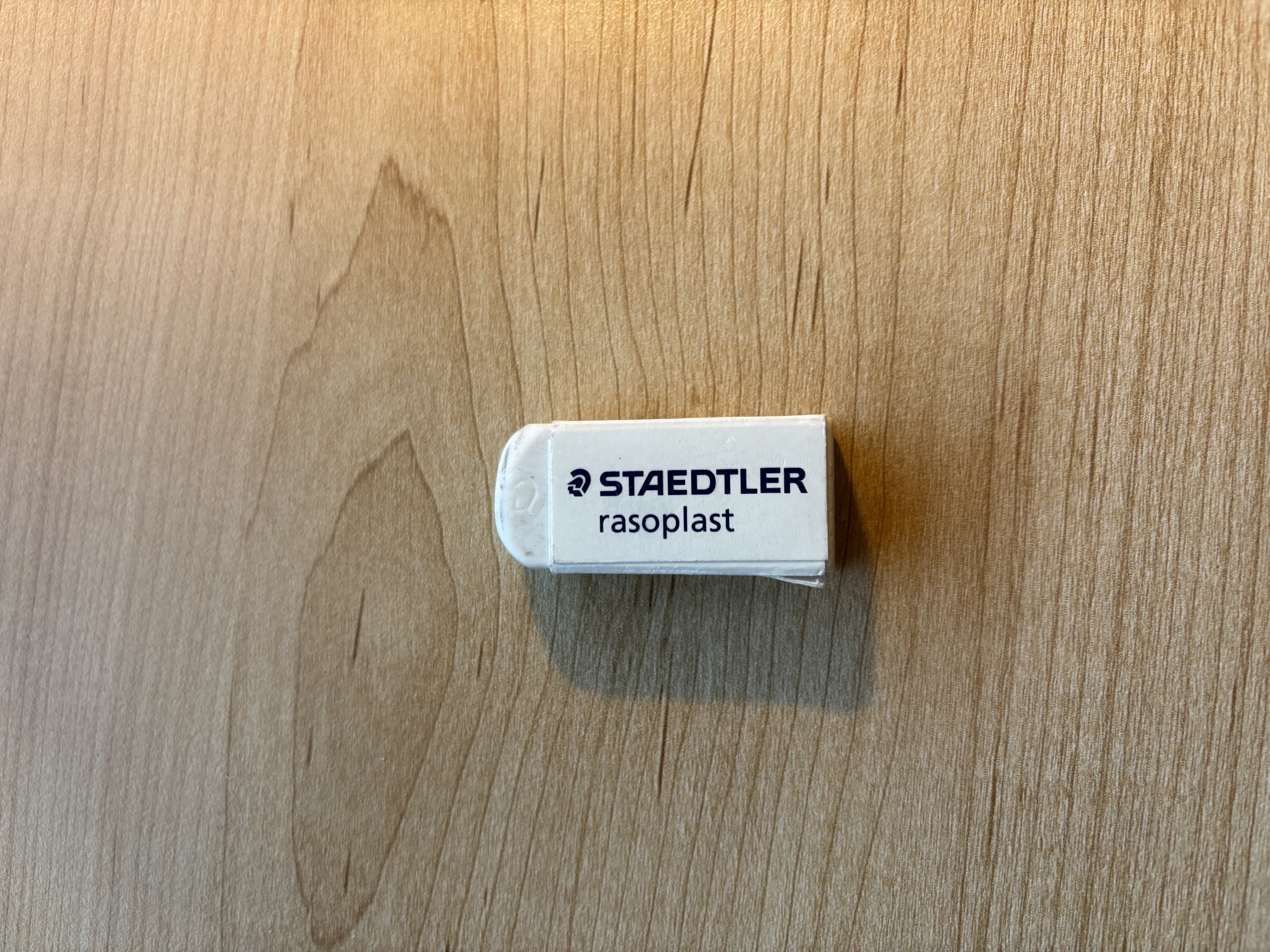

Front view of my eraser.

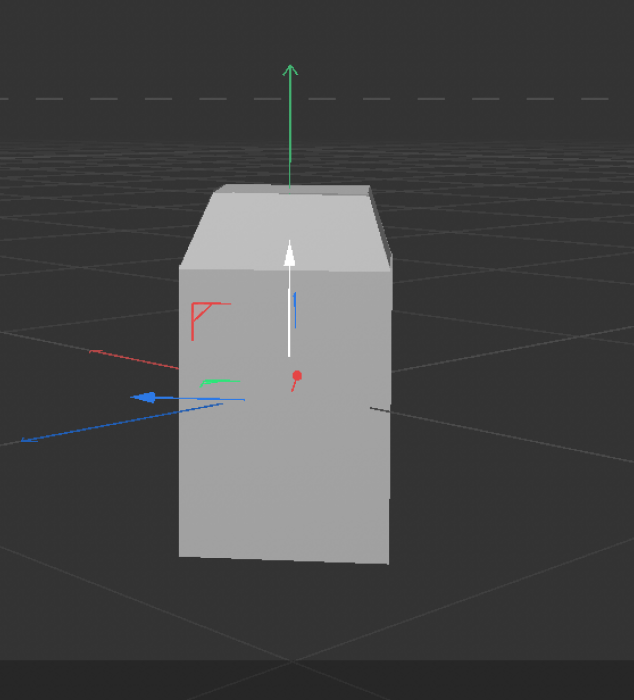

After observing the object's front view, I elongated the rectangular prism.

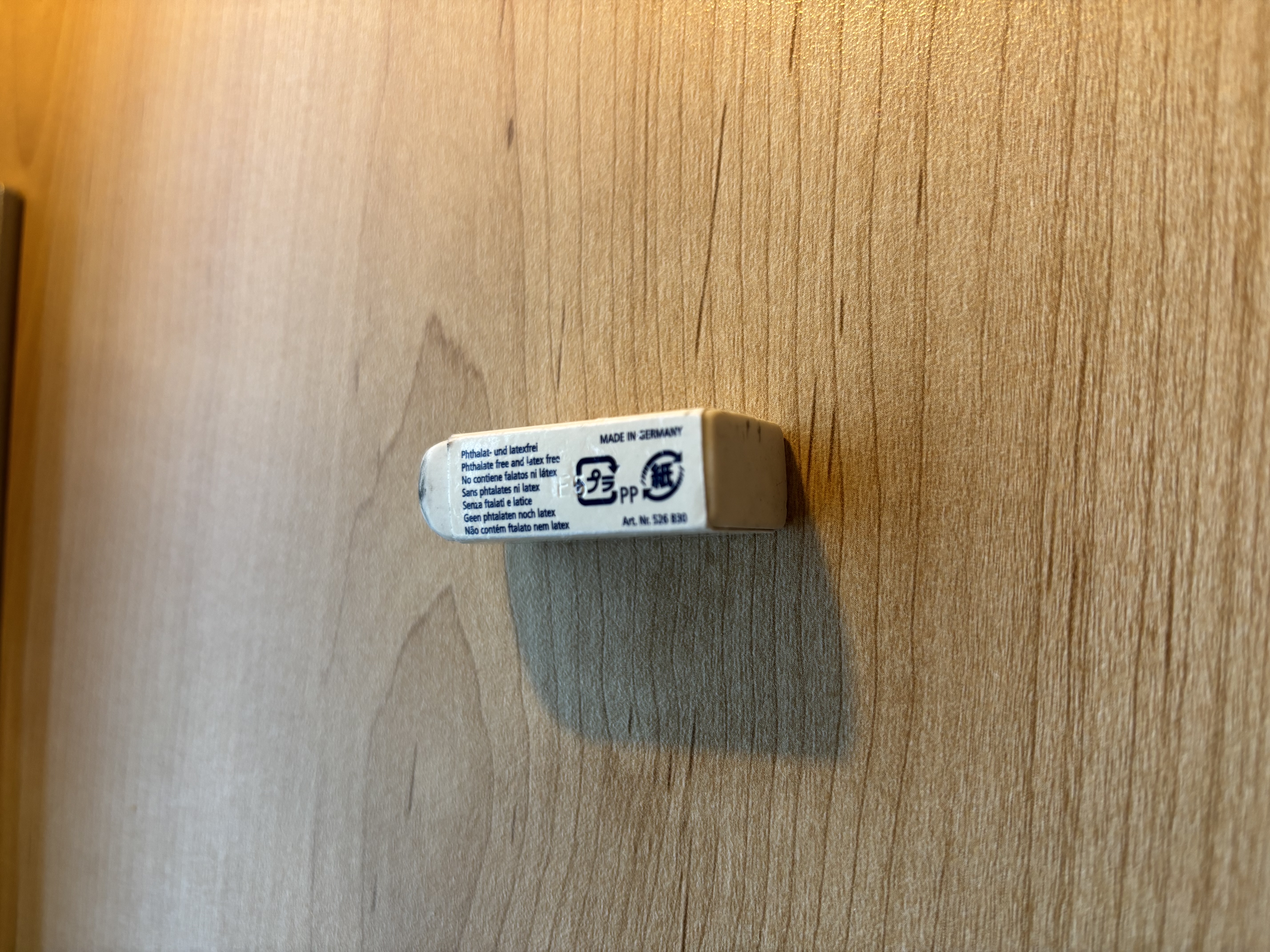

The side view of my eraser.

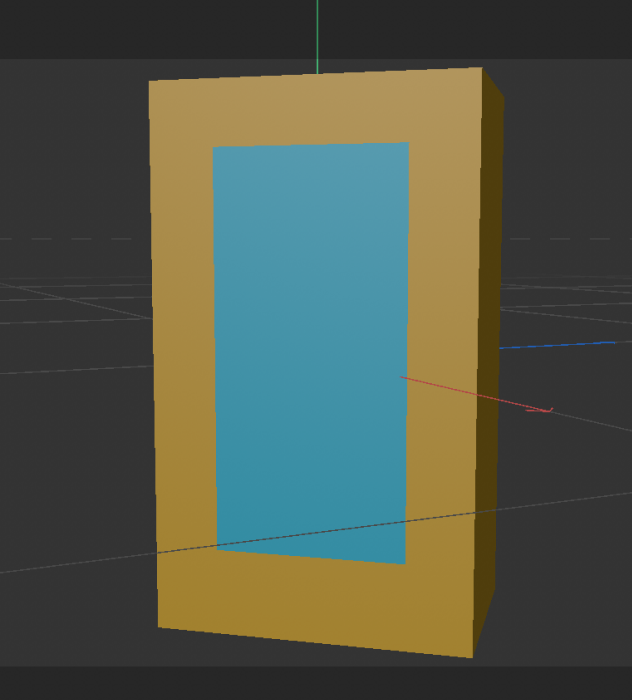

Another rectangular prism I encounter most frequently in daily life.

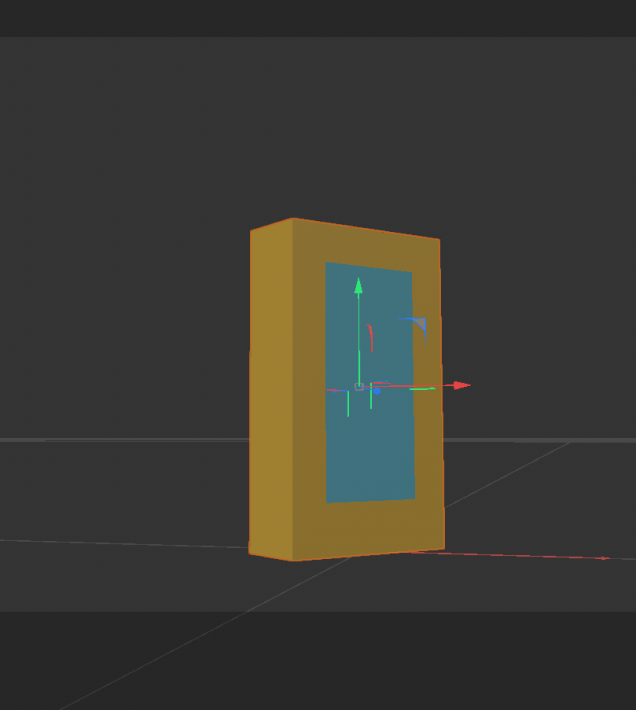

I am adjusting the position of the blue rectangular prism.

Side View of My Tarot Cards.

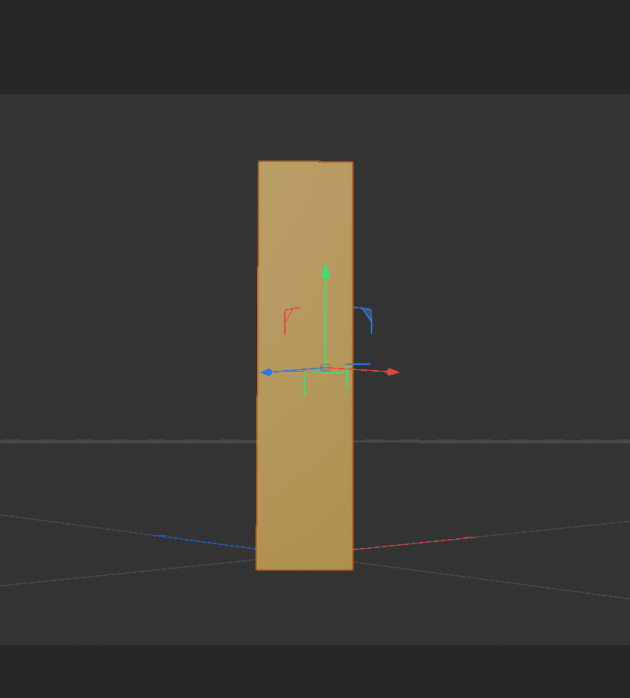

Side view in the software.

Front View of My Tarot Cards.

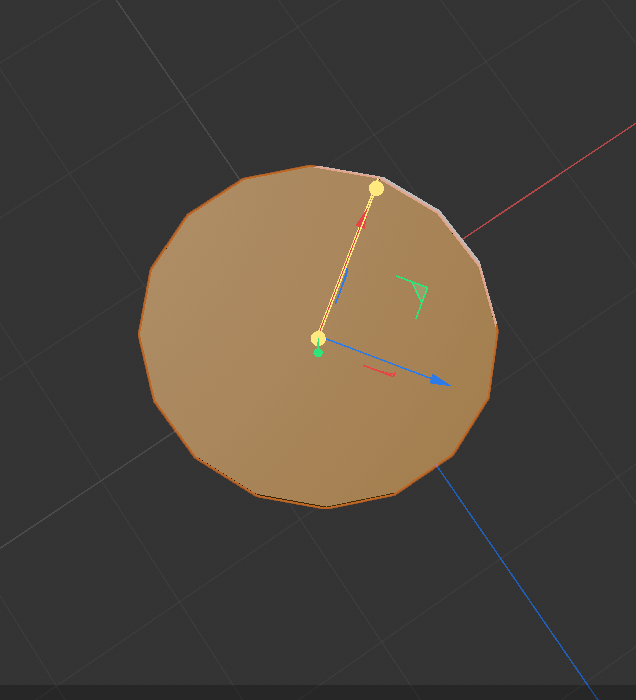

Top view of an Oreo cookie.

Under warm overhead lighting, the Oreo cookie highlights the shadows and volume of the biscuit.

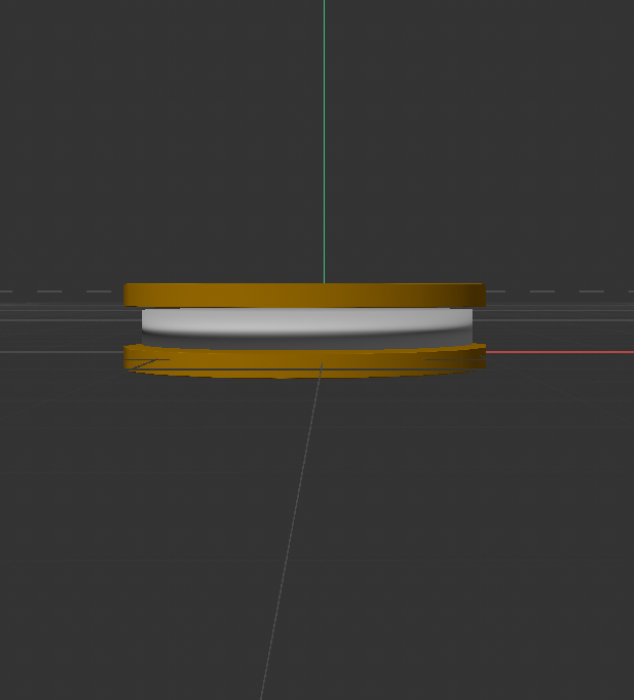

The white filling is fully visible in the side view of the cookie.

Front view of the cookie.

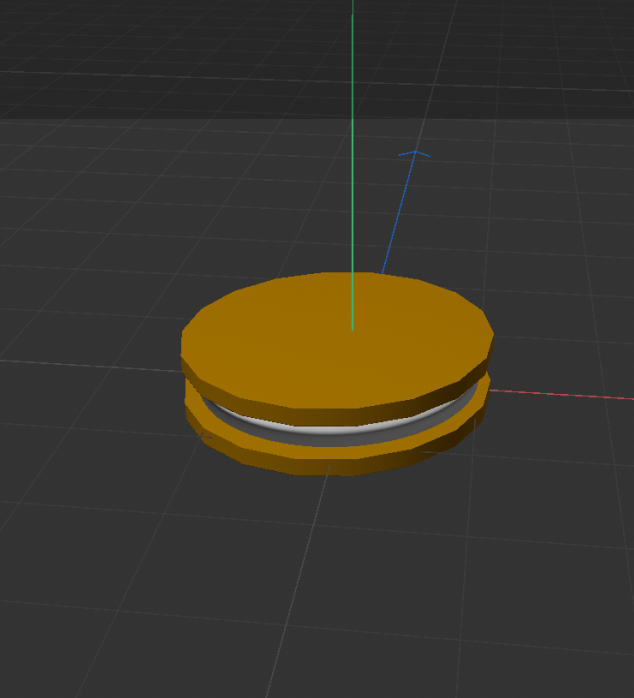

After observation, I found the cookie filling had an oily texture, so I added a strong emission effect and increased the color intensity.

The bottle of vitamin C tablets on my desk. It is a prime example of a deformed cylinder.

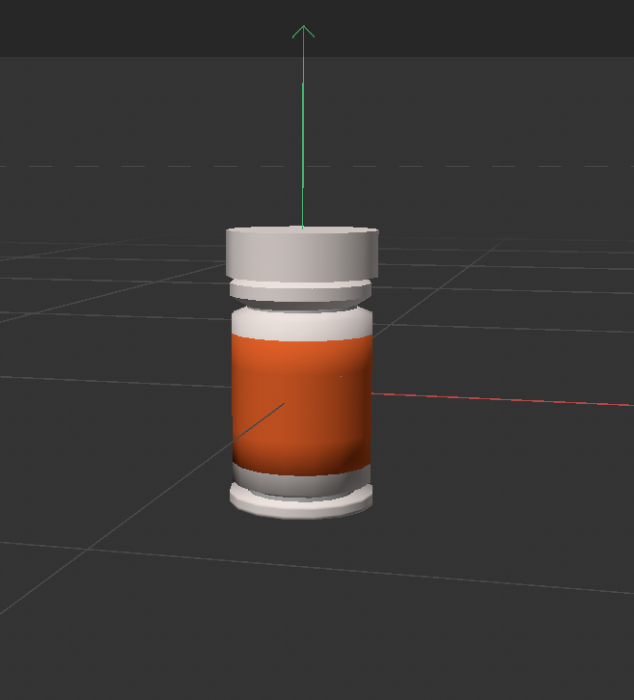

The bottle's body features fully rounded corners. Therefore, I set the rounding angle to a high value.

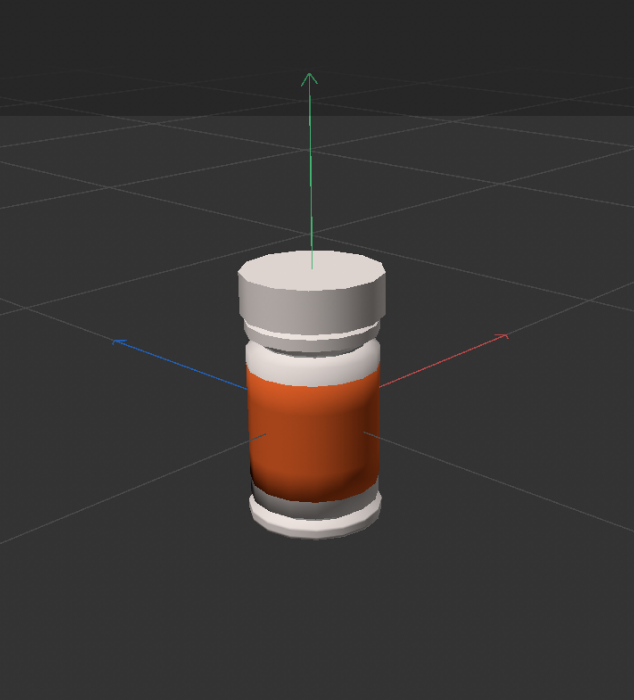

After observation, I increased the concave-convex texture on the bottle cap's sides to enhance its granular appearance.

Side elevation view of the bottle.

A top-down view of the bottle allows for a clearer observation of its bottom structure.

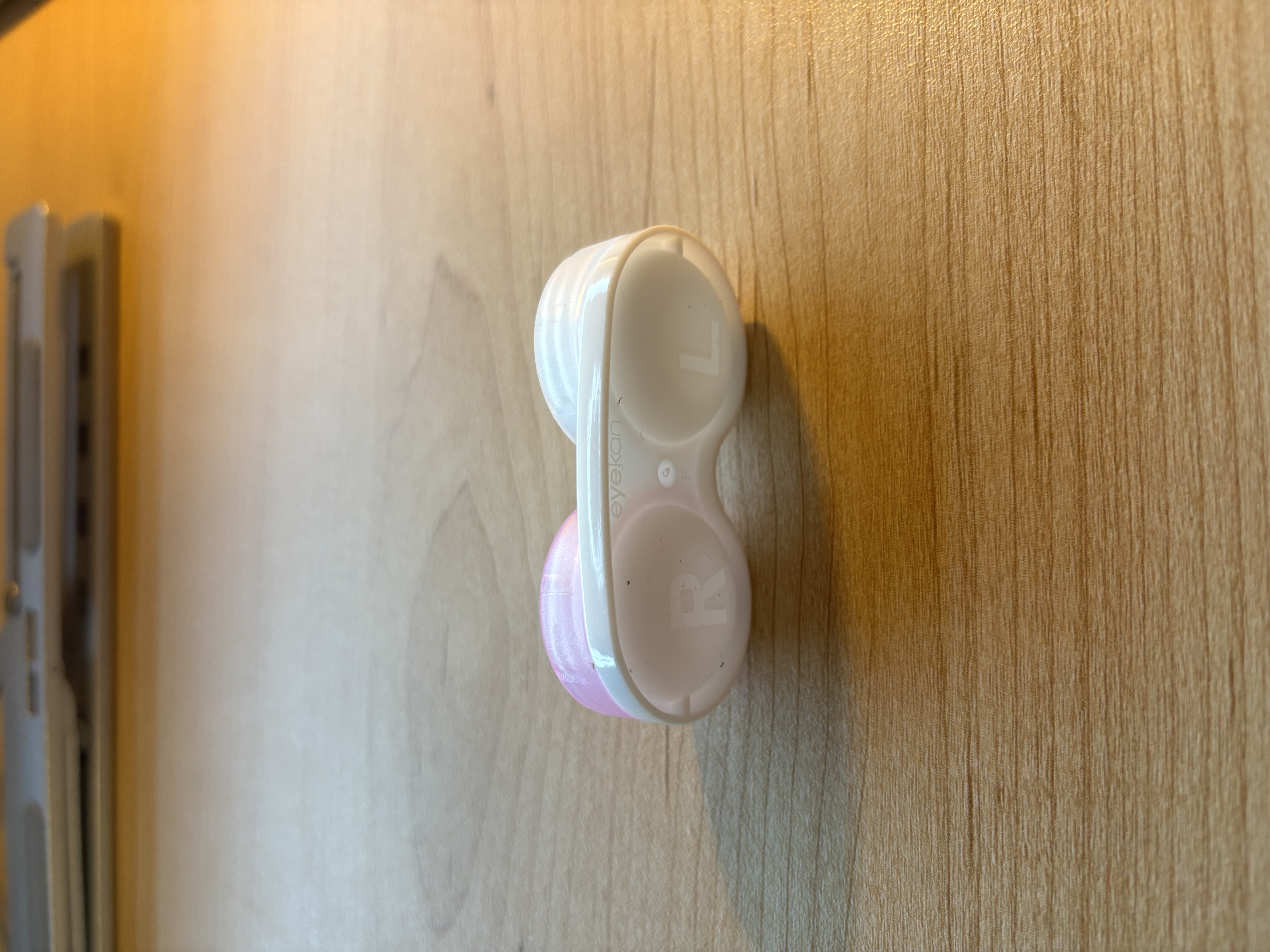

The bottom of my contact lens case.

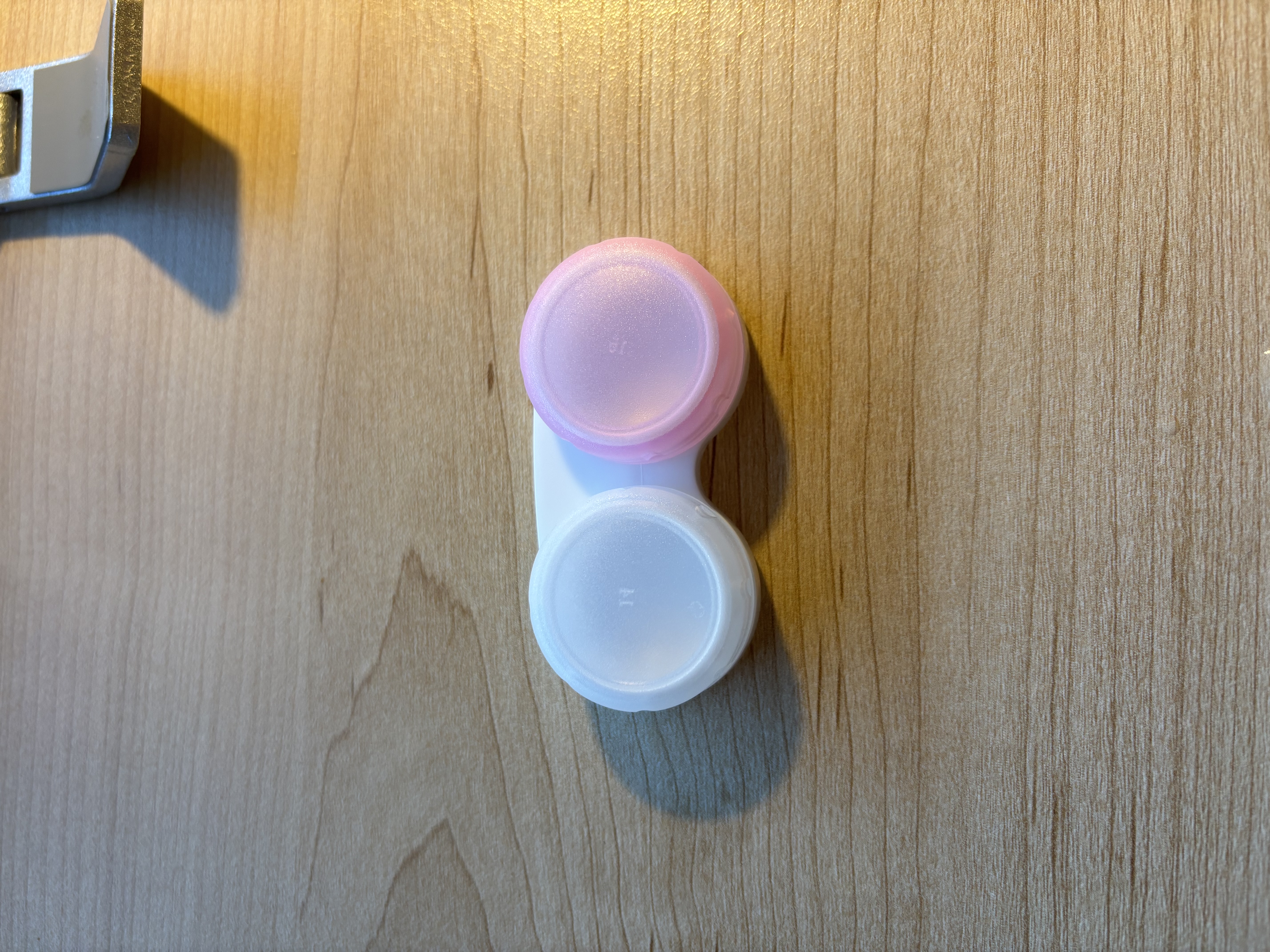

Front view of the contact lens case.

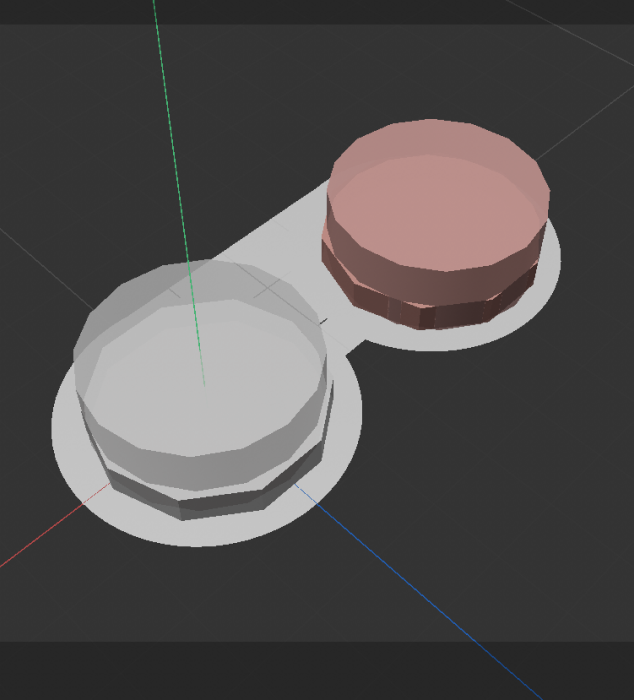

After observation, I set the two cylinders to display a translucent material.

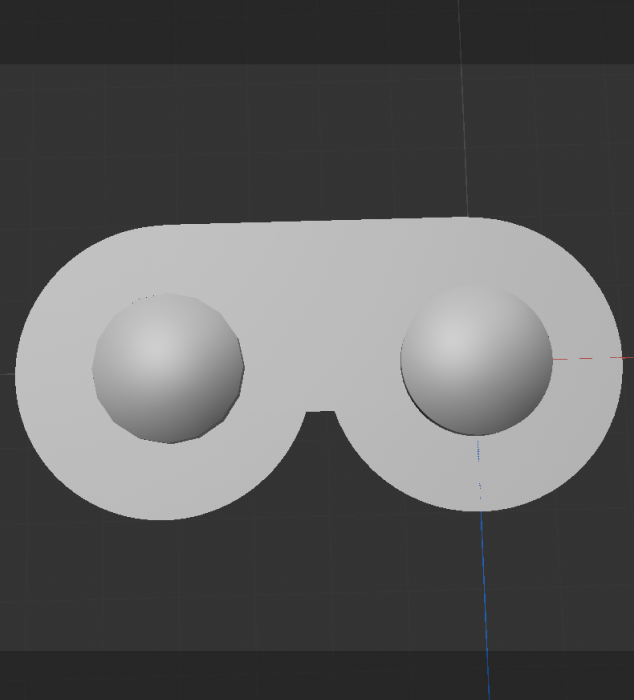

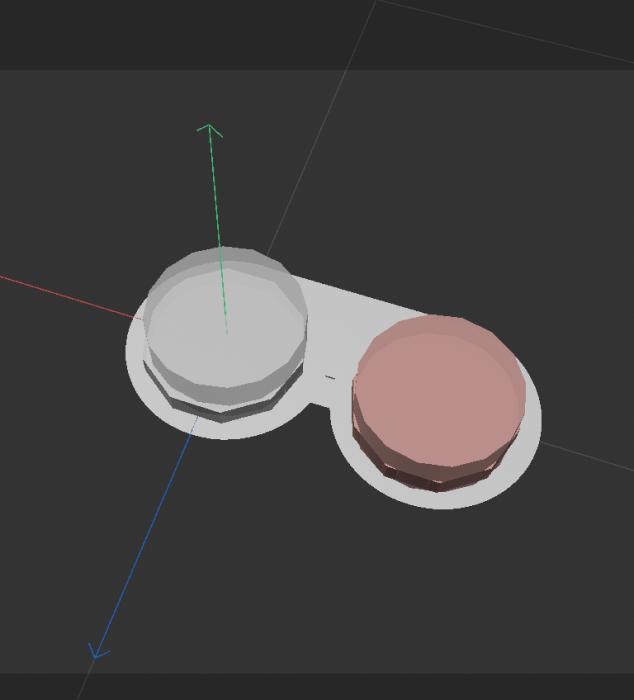

Top view of the final modeling result for the contact lens case.

Activity 2

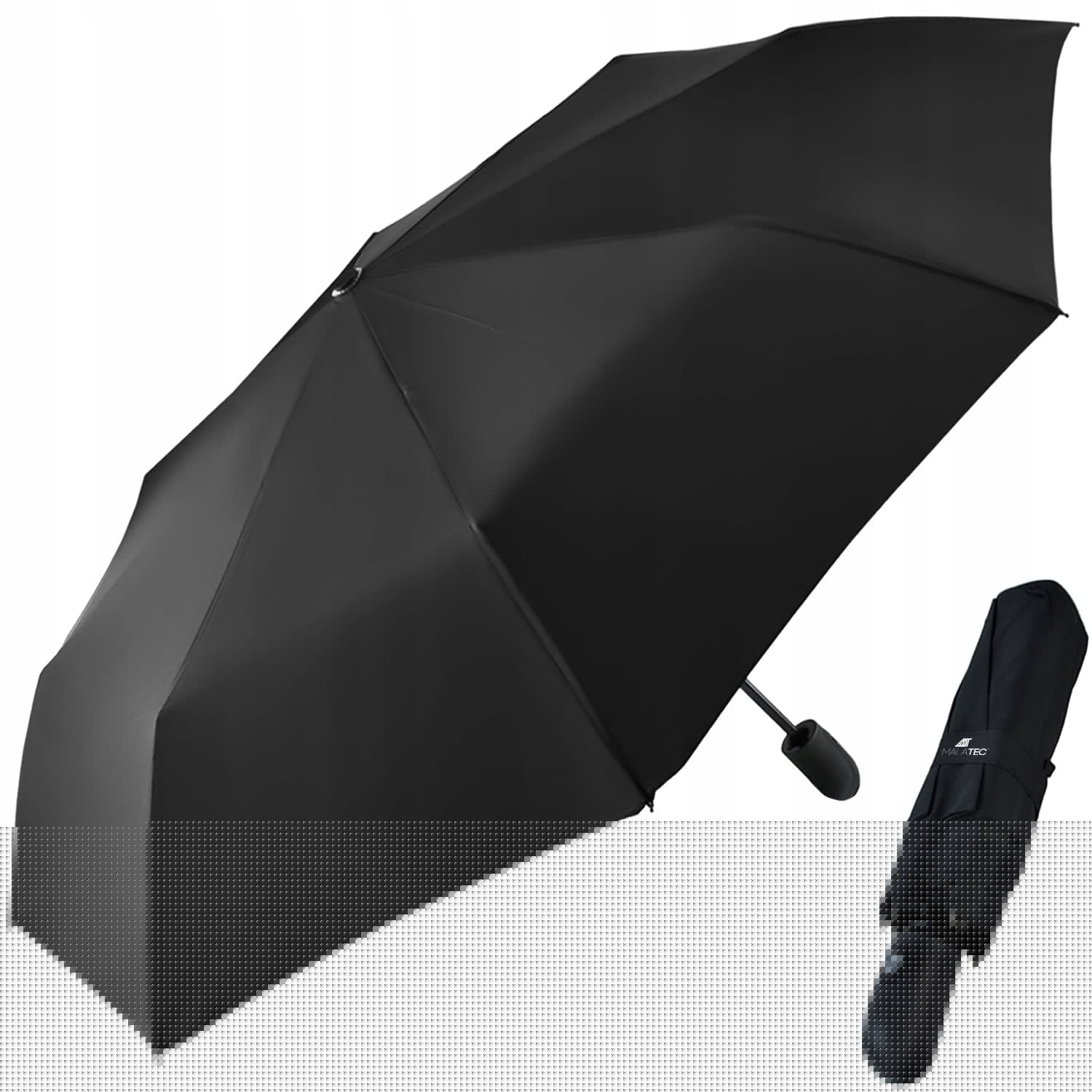

A short-handled black umbrella.

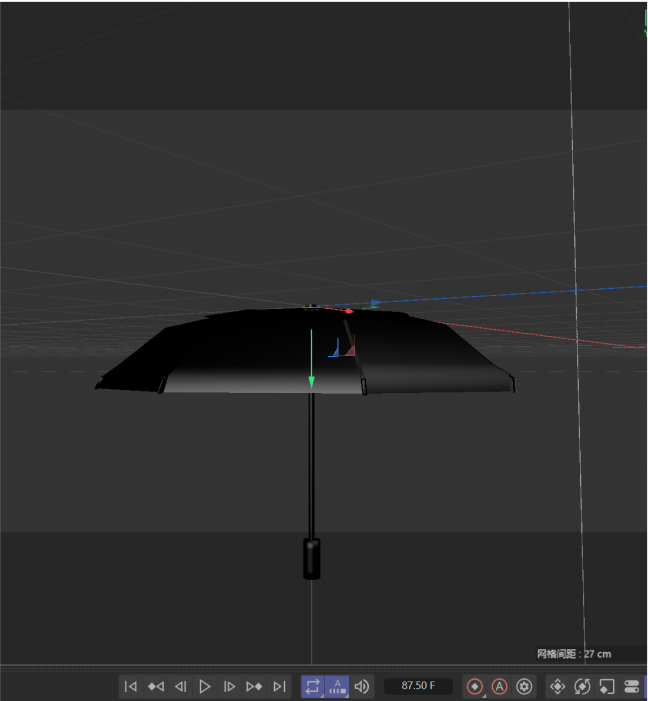

Final front view of the model

Front view of the canopy

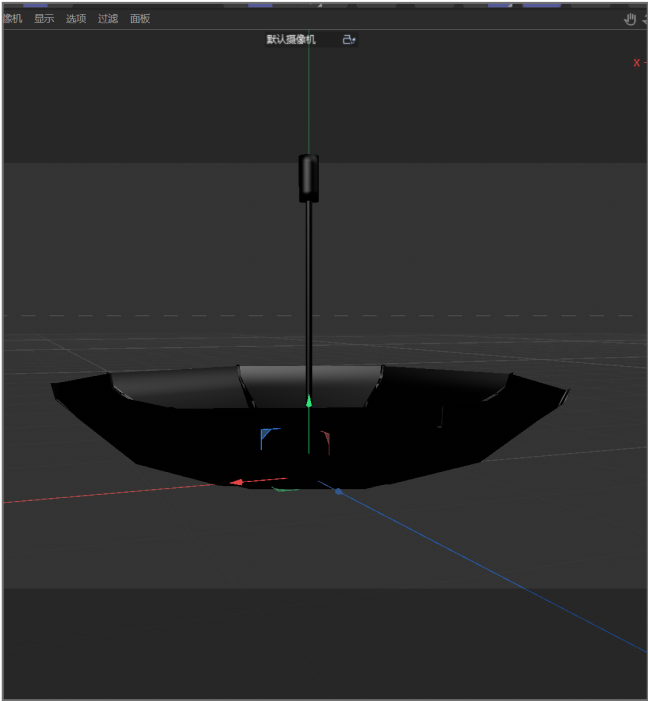

Side view of the umbrella base

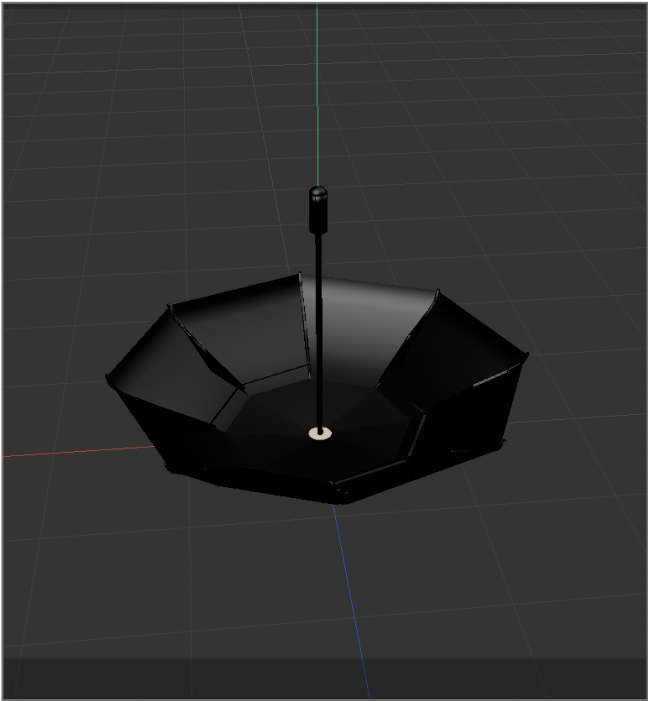

Bottom view of the umbrella

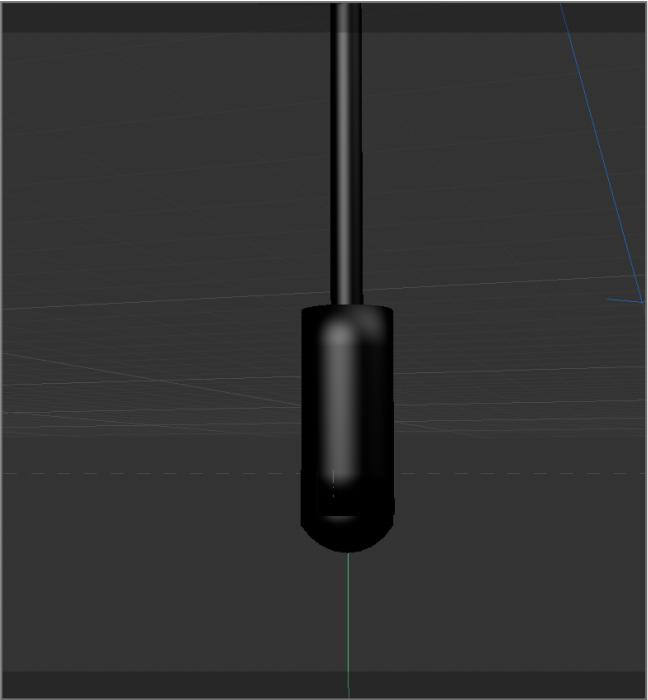

Close-up of the umbrella handle

Close-up of the umbrella's top fastening clip

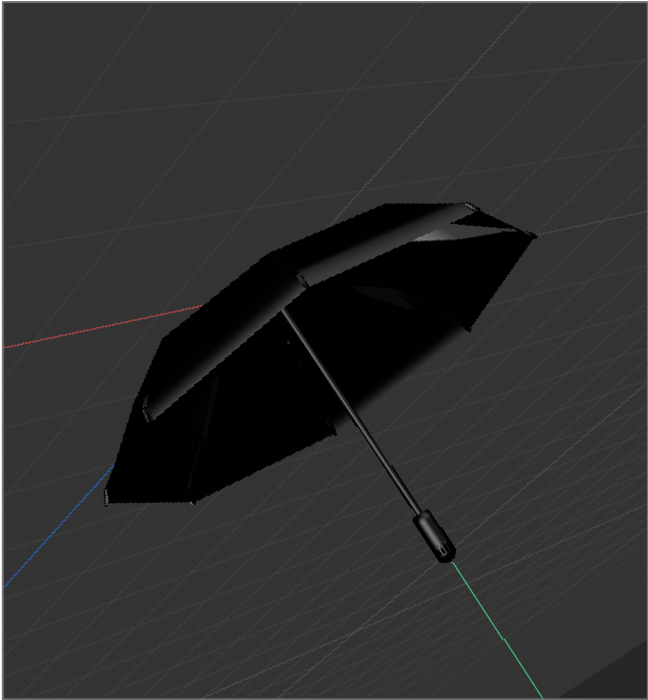

Side View Structural Diagram of the Umbrella

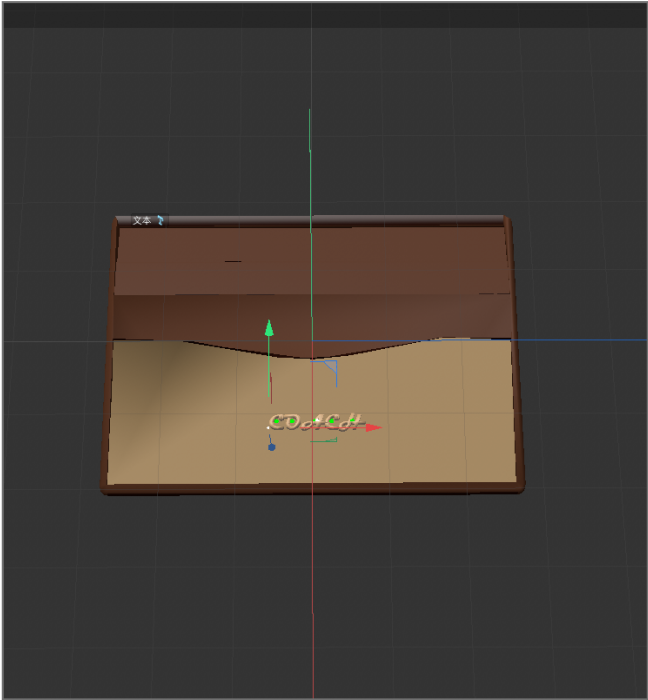

Card Case Front ViewCard Case Front View

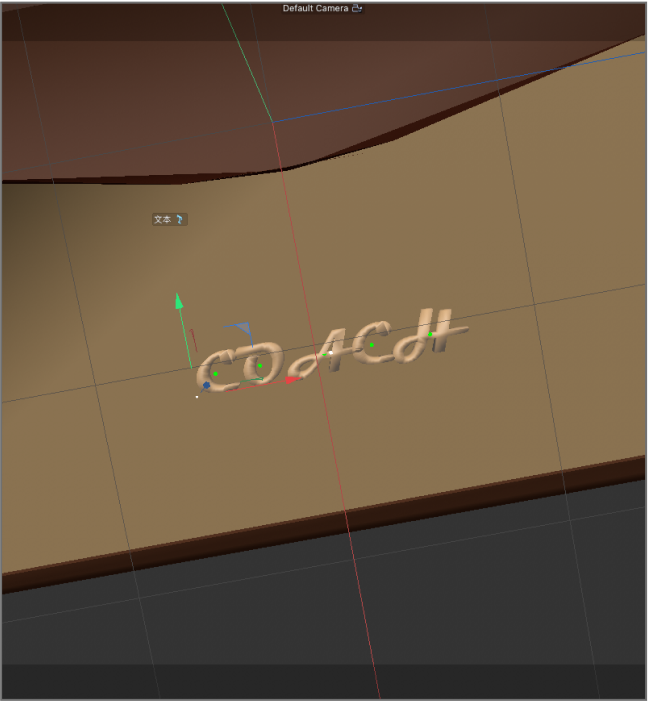

The card case I use to hold my cards features the word

Back view of the card case

Card holder displayed upright to show front structure, featuring three card slots and a 3D word.

Stand the card case upright to view the back structure, which features a light-colored card slot made of reflective transparent material.

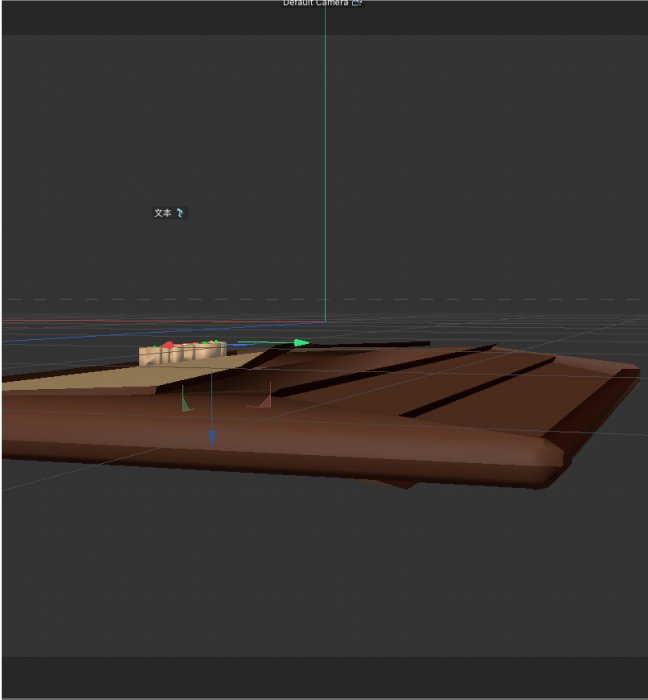

Side view of the card case

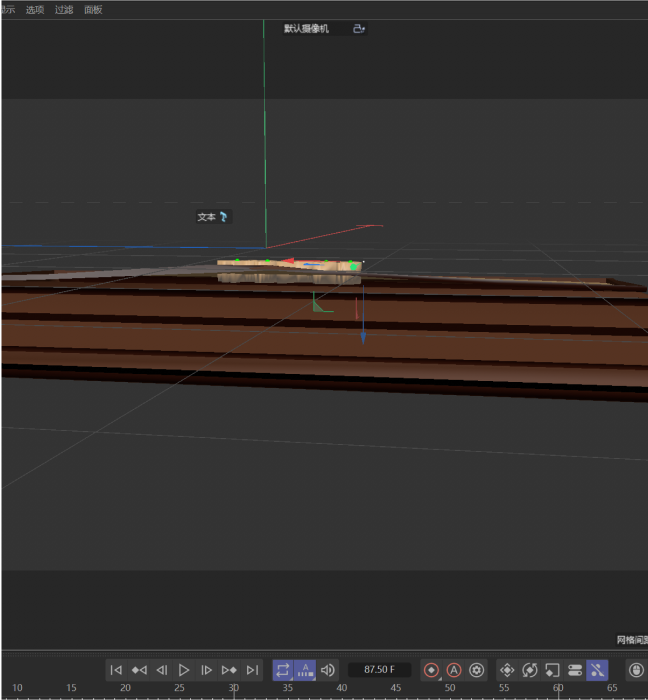

Card Slot Plan View

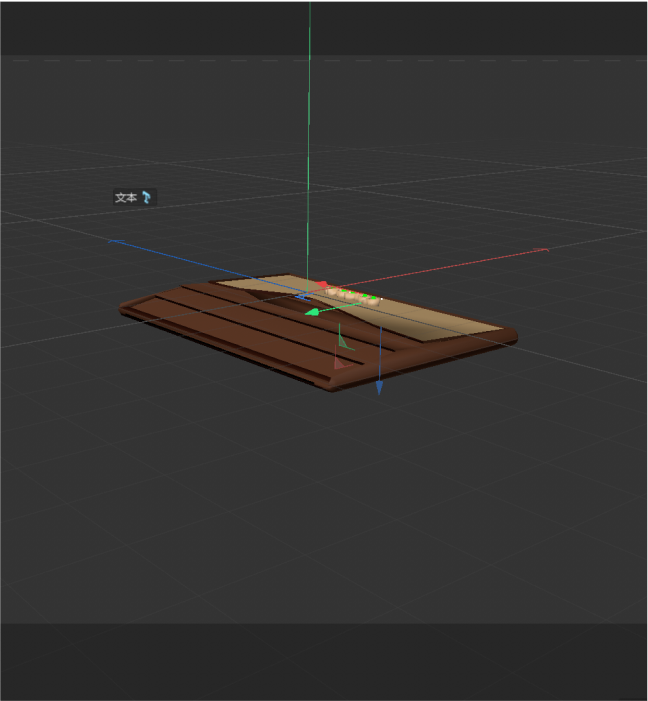

This is a 3/4 side view screenshot of a modelling card case

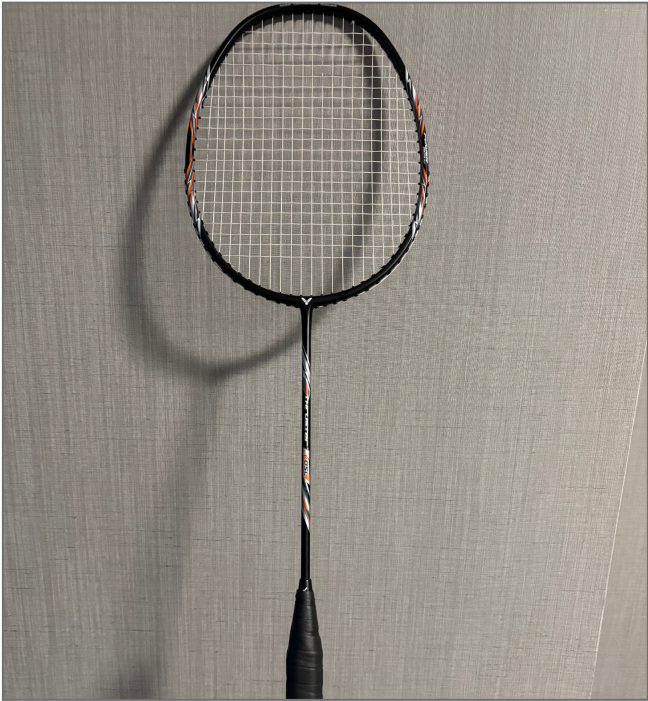

Front view of my black badminton racket.

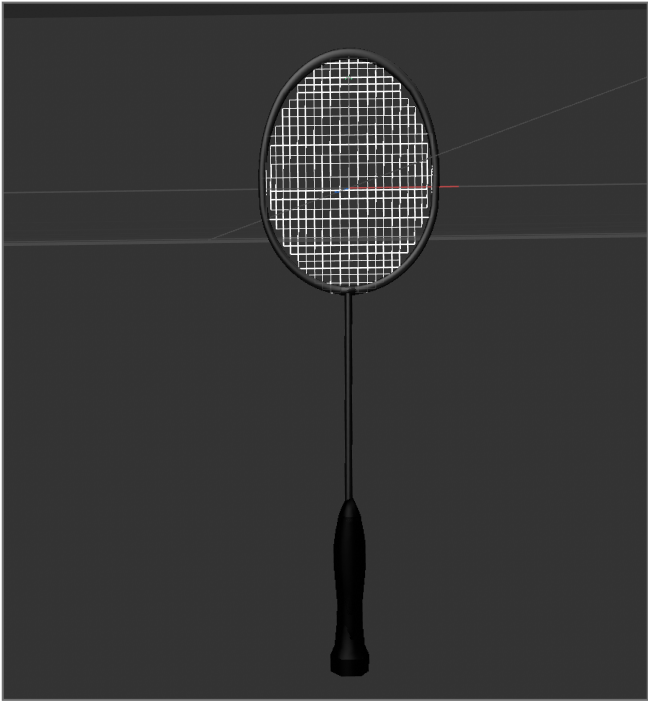

Final screenshot of the badminton racket model, front view.

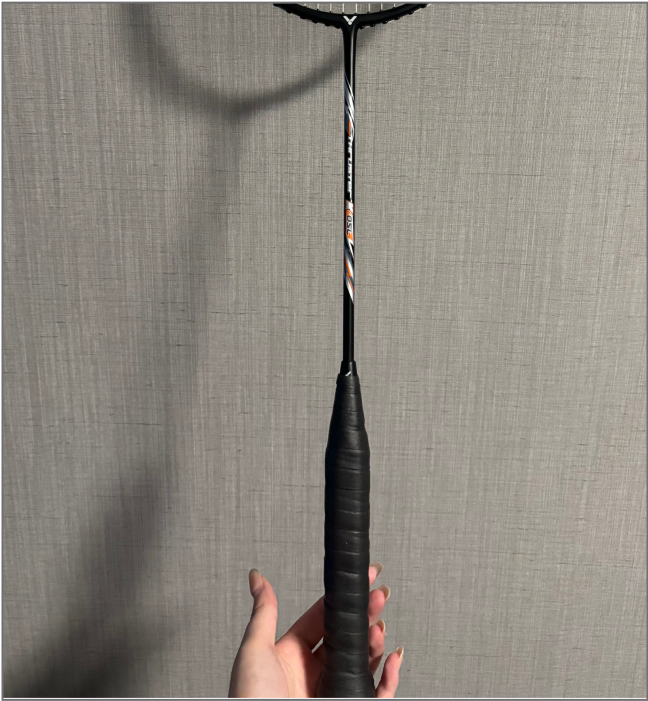

Front view of black badminton racket handle

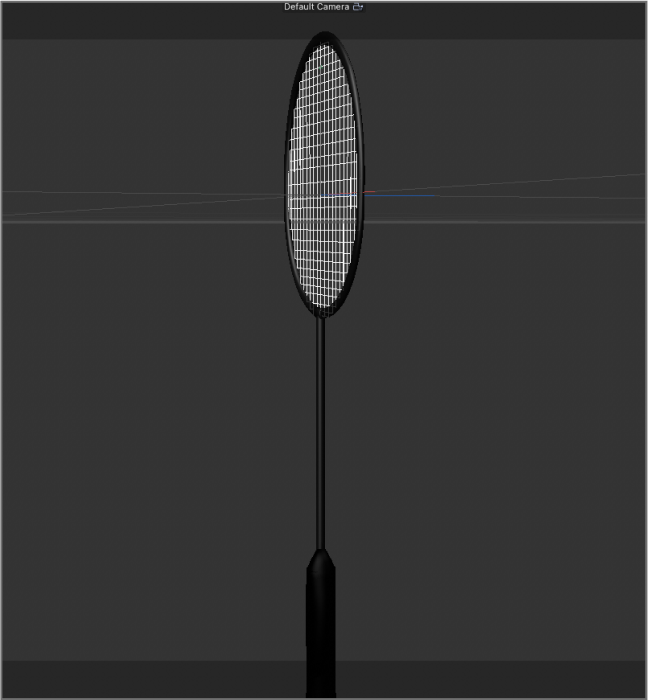

Final screenshot of the badminton racket model showing front and side views.

Close-up of the racket handle

Close-up of the golf club from above

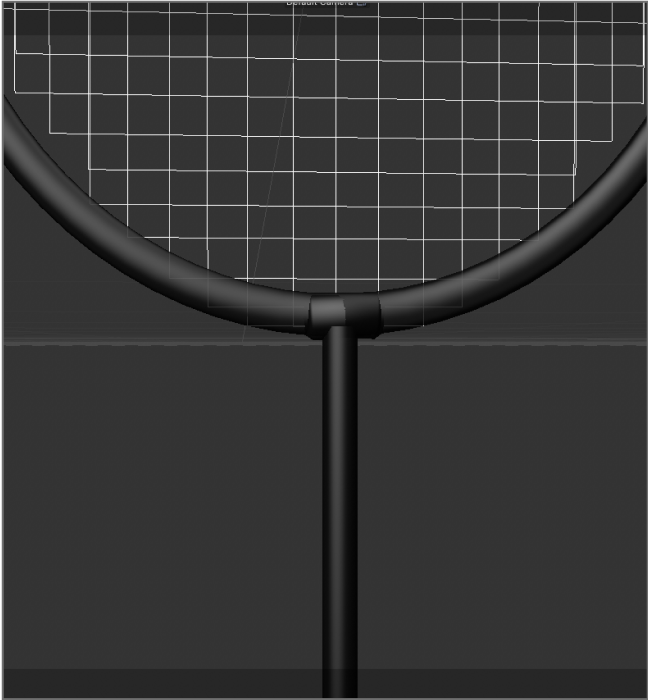

Close-up of the

Final screenshot of the badminton racket model showing top and side views.

Material Workshop 1

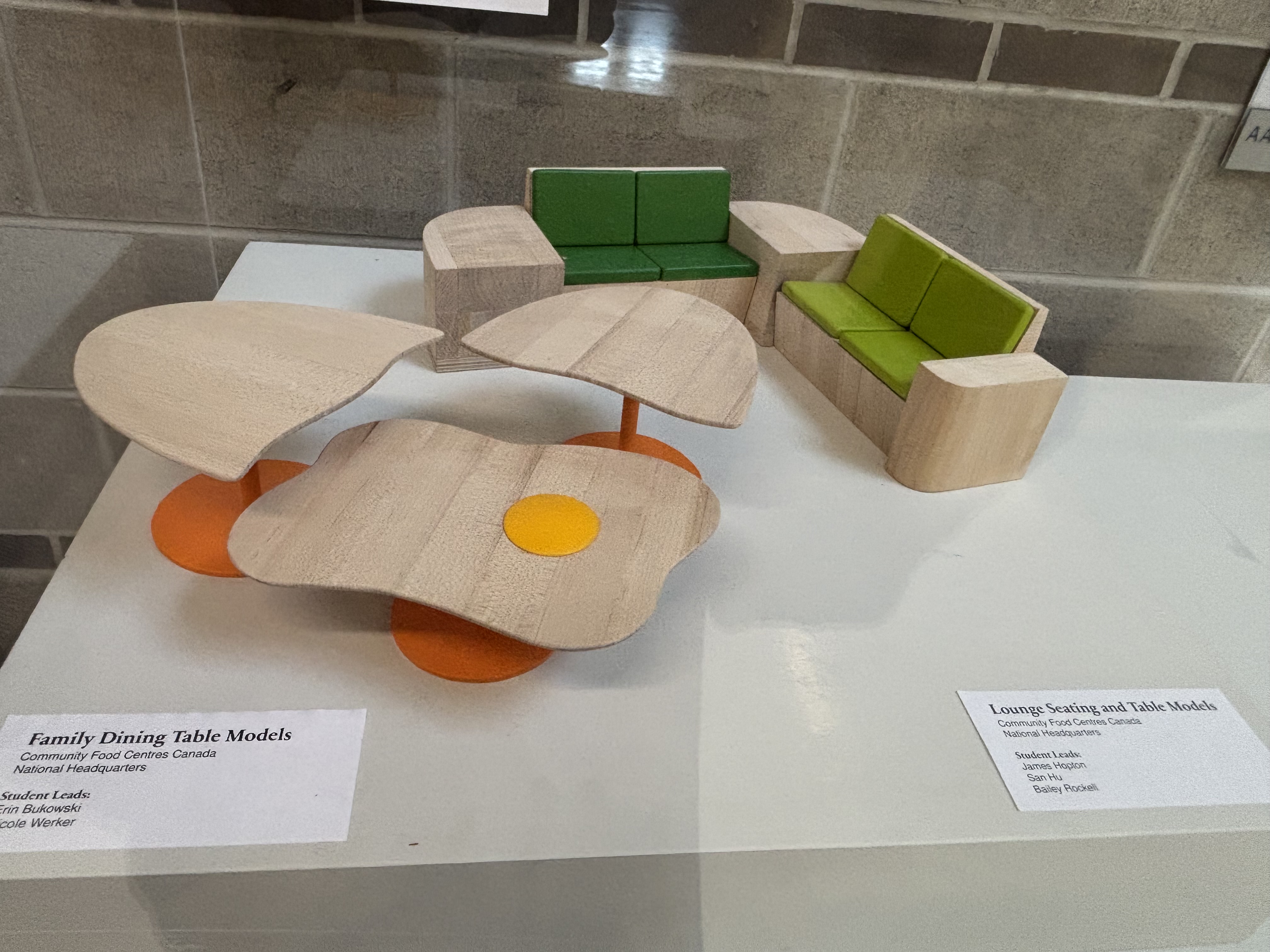

A complete set of wooden furniture models on display.<a href='https://www.youtube.com/embed/tgbNymZ7vqY' target='_blank'><p>Project Video Link</p></a>

Three glass cups made from molten glass on the display stand. <div class='container'><iframe class='responsive-iframe' src='https://www.youtube.com/embed/tgbNymZ7vqY'></iframe></div>

Wood-look birdhouse crafted from stoneware clay using salt-fired techniques.

Material Workshop 2

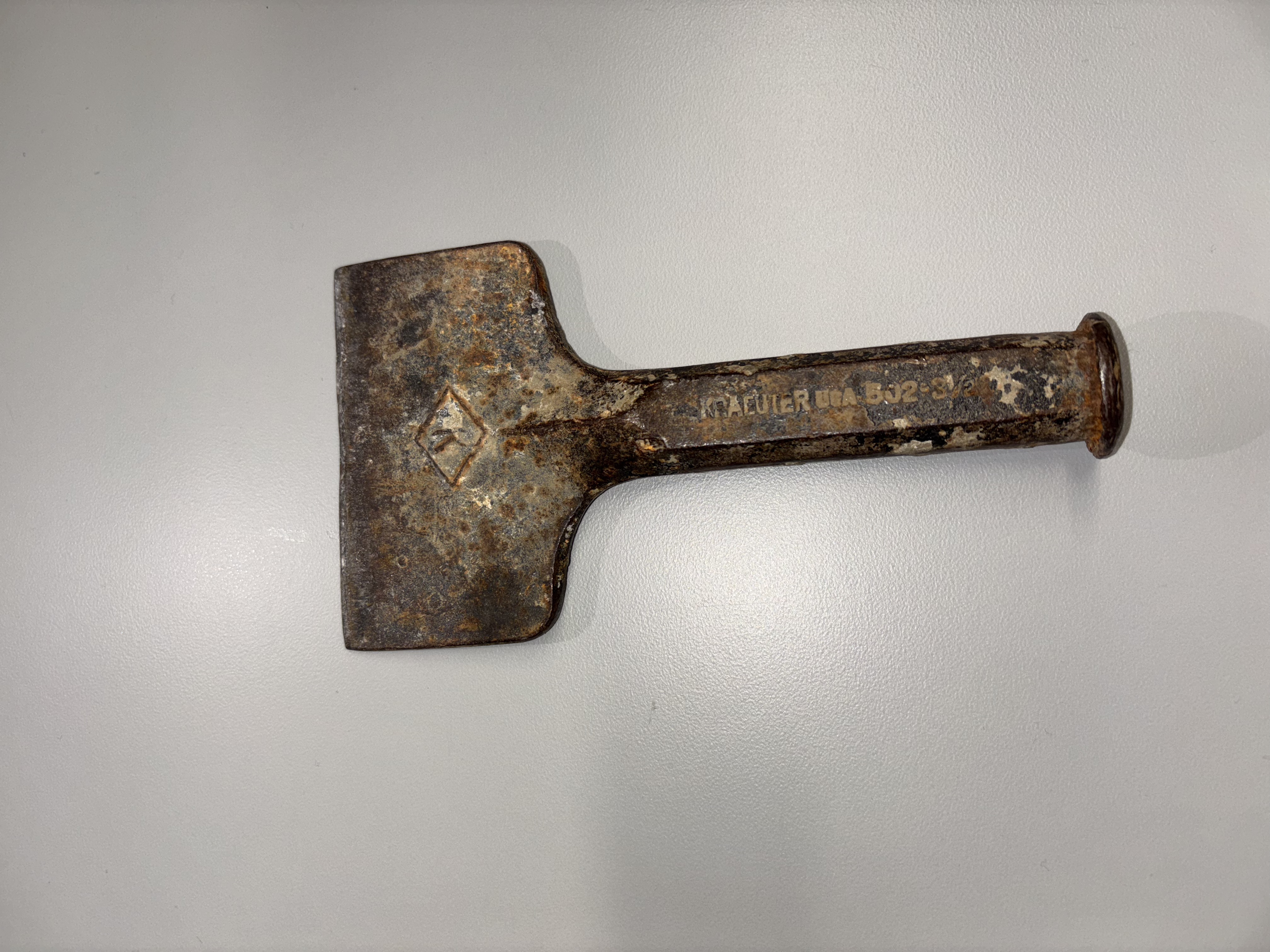

Descriptives:iron <p>Material State:refined <p>Material Plasticity: rigid <p>Material Use: tools <a href='https://www.youtube.com/embed/tgbNymZ7vqY' target='_blank'><p>Project Video Link</p></a>

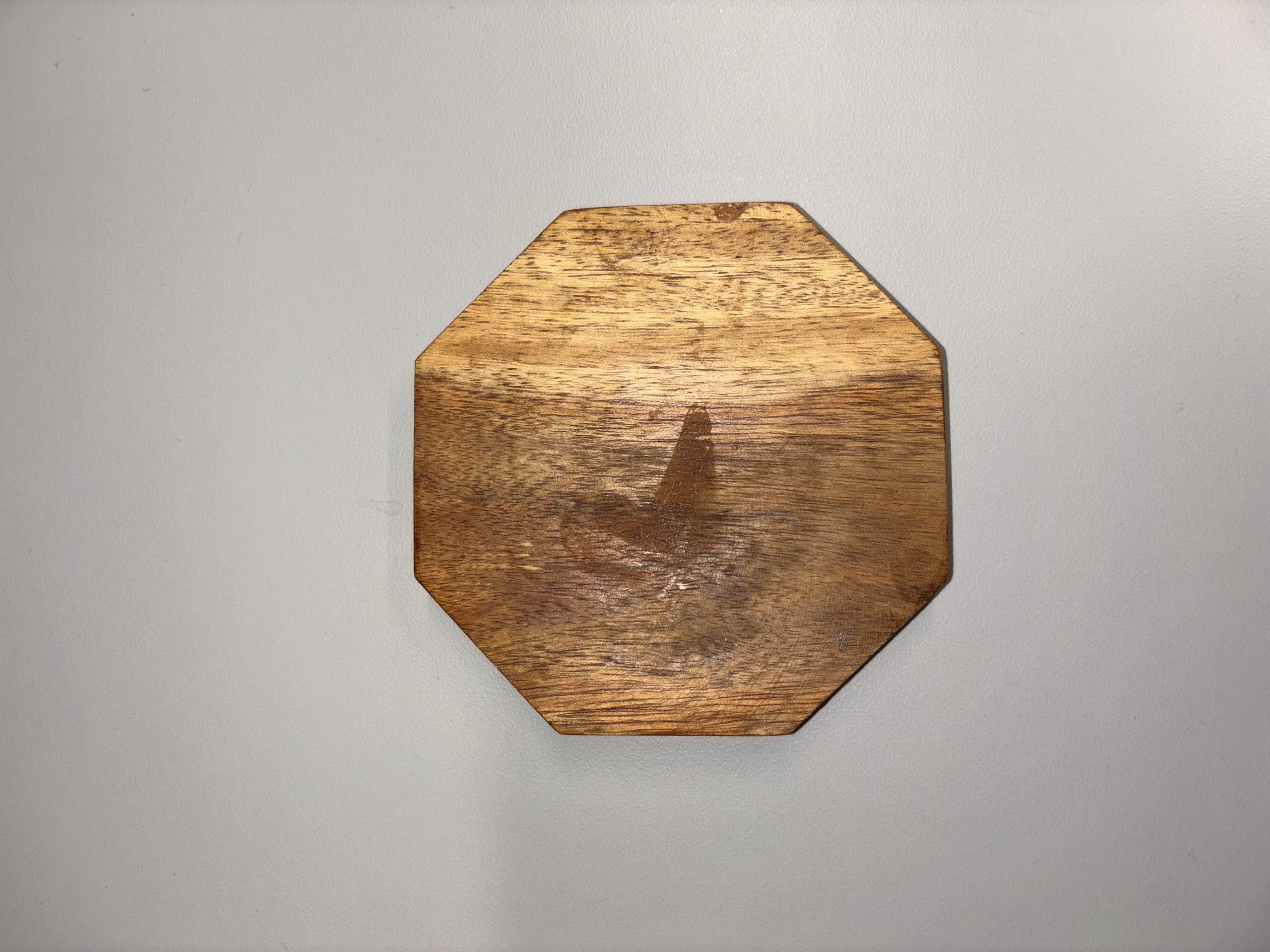

Descriptives:wood <p>Material State:refined <p>Material Plasticity:rigid <p>Material Use: tools，Tableware mat <div class='container'><iframe class='responsive-iframe' src='https://www.youtube.com/embed/tgbNymZ7vqY'></iframe></div>

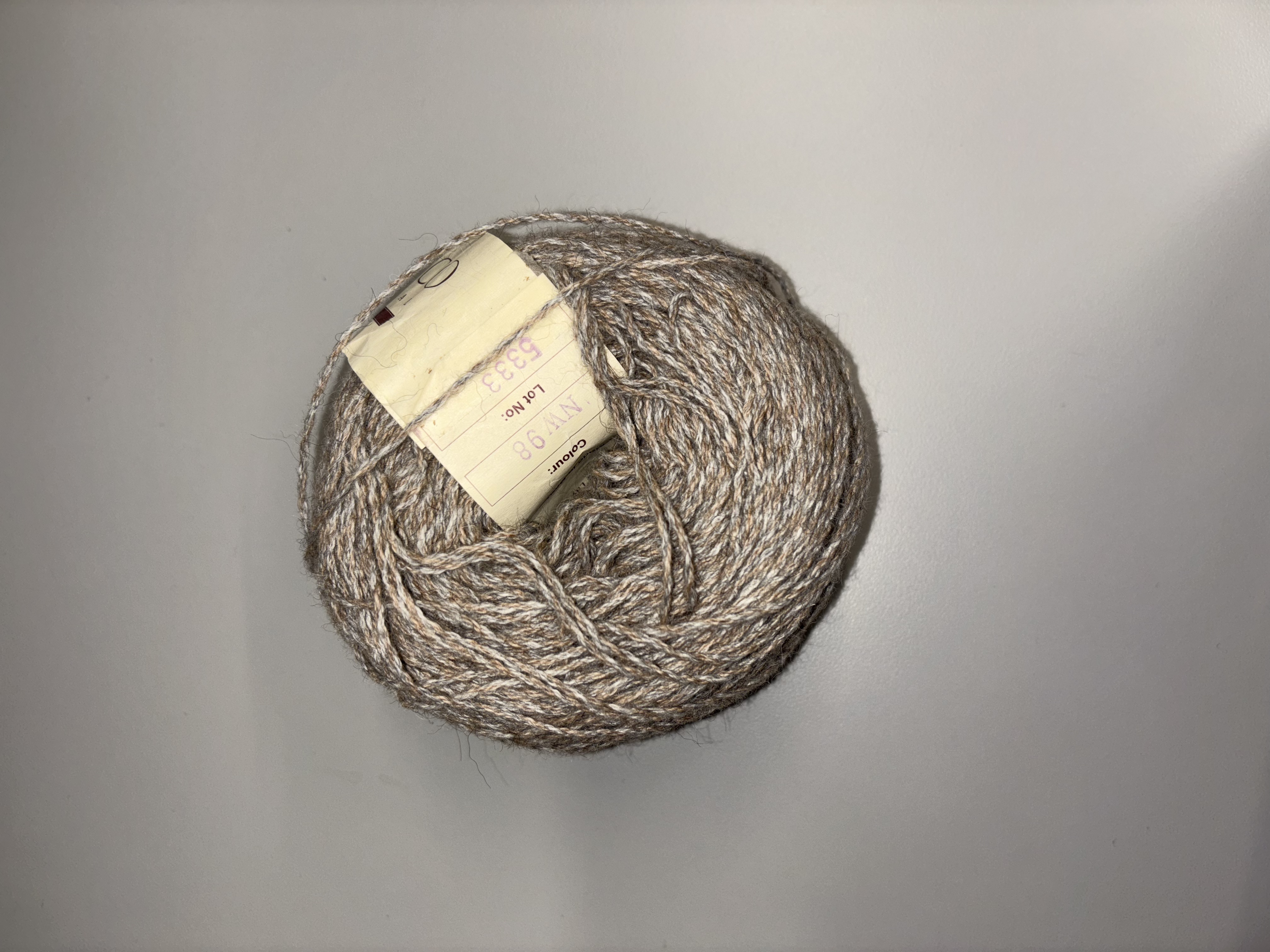

Descriptives: Wool (fiber）<p>Material State: refined <p>Material Plasticity: pliable <p>Material Use:clothing,

Project 1

Physical 3D-Printed Model

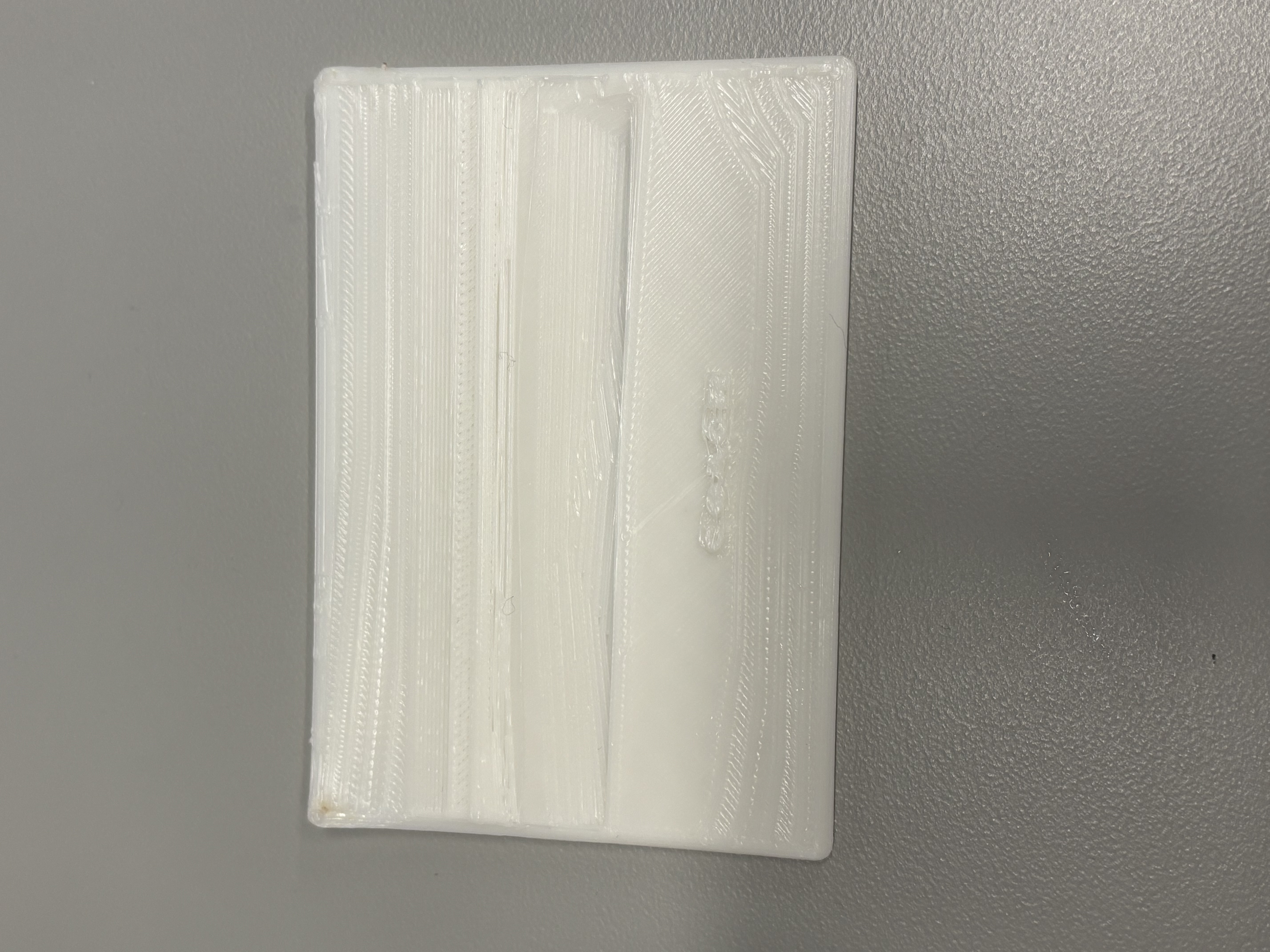

Physical 3D-Printed Model Below is a photo collection of my replica wallet modeled in Cinema 4D. During this replication, the wallet was placed parallel on the Ultimaker 3D printer's platform. Dimensions: 50mm x 50mm. Printed in support-free mode. Total printing time: approximately 1 hour.

Wood-look birdhouse crafted from stoneware clay using salt-fired techniques.

Project 1 Models

Published 3D Model 1

Wallet

Final modeling of the wallet, with increased lighting and shadow intensity.

Published 3D Model 2

Badminton Racket

Final modeling of the badminton racket, incorporating the bottom logo and additional details on the racket.

Published 3D Model 3

Umbrella

Final render of the umbrella, with enhanced fog effects and umbrella canopy transparency.
